HC-4000 Android PDA mobile handheld barcode scanner for Warehouse Project

HC-4000 is a rugged industrial handheld PDA mobile data terminal, its built with 1D/2D Zebra barcode scanner, optional RFID reader, which is special designed for warehouse/inventory/Ticket event projects.

Interview Collection share

Main Spec

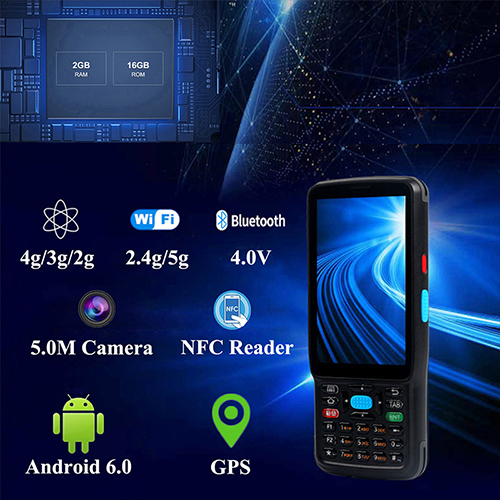

Android 6.0 Quad Core CPU 2GB RAM,16GB ROM,Support 32GB SD Honeywell 1D/2D Scanner Engine,NFC Reader 4000mAH Battery,4g/3g/2g/Wifi/GPS/BT/Camera Widely Used in Warehouse/Logistics/Supermarket

Function

Subfunction

Physical

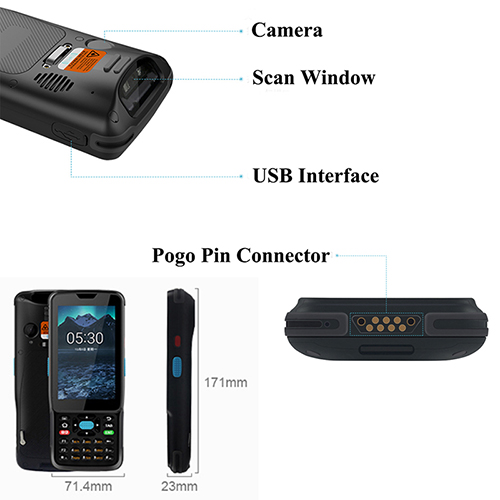

Dimensions:171mm*71.4mm*23mm(Length*Width*Height)

Weight:263g(Include battery)

Operating temperature:-20℃-50℃

Storage temperature:-40℃-70℃

Relative humidity:98%(No condensation)

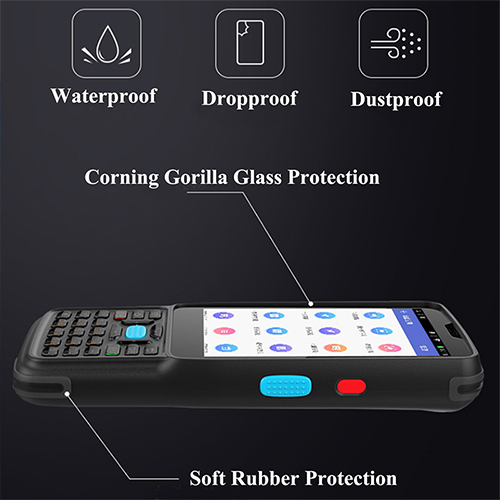

Anti-fall strength: can withstand multiple drops from 1.5 meters to the concrete floor

Roll test: roll over 500 times in a 1 meter diameter range

Industrial grade:1P65

Anti-static: ±8KV contact discharge; ±12KV air discharge

 System

CPU:MT6737+MTK6382 quad core 1.45GHz

OS:Android 6.0

Memory:16GB eMMC/2GB DDR3/Maximum support for 32G-B external storage

Display:4-inch IPS/WVGA (800*480) 5-point touch capacitive screen, Corning Glass

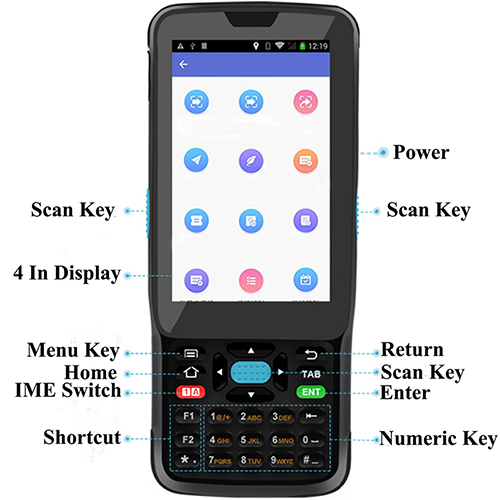

Key:29 physical buttons (switch button, menu button, home button, return button, input method, switch button, TAB button, ENT button, undo button)

Main batteryPolymer high pressure 4.35V, 4000mAh

Secondary batteryLithium battery 4.2V, 200mAh (can be replaced without switch off)

Function

Scanner engineSupport for 1D 2D barcodes Honeywell N6603 imported scan engine

NFC:Communication: Supports 13.56MHz RFID tag identification of ISO 14443 and ISO15693 standards, and supports digital reading of chip cards.

Camera:Rear camera 5M AF; compatible with 8M AF

Positioning/navigation:Built-in GPS / Beidou, support AGPS

Scanning indicatorRed

Signal indicatorRed and green bicolor lamp

Audio systemBuilt-in s***er, handset, microphone, 3.5mm stereo headphone jack, vibrator

Sensor:Gravity sensor

Network

Network standard:WCDMA/EVDO/CDMA1X/GSM/TD-SCDMA /TD-LTE/ FDD-LTE

Network band:CDMA BC0;GSM B2/3/8;WCDMA B1/8;TD-SCDMA B34/B39;TD-LTE B38/39/40/41(100M);FDD-LTE  B1/3

WLAN: 802.11 b/g/n internal antenna supporting 2.4GHz & 5GHz

WLANNetwork security protocolWEP,WPA, WPA -PSK,WPA-V2.0

WPAN:Bluetooth V4.0

USB interface:Micro 5PIN USB 2.0

Charging interfaceMicro 5PIN USB 2.0/1.5A fast charging, optional charging cradle to charge

Development

System environmentAndroid 6.0

development toolsAndroid Compiler Environment+Android studio
