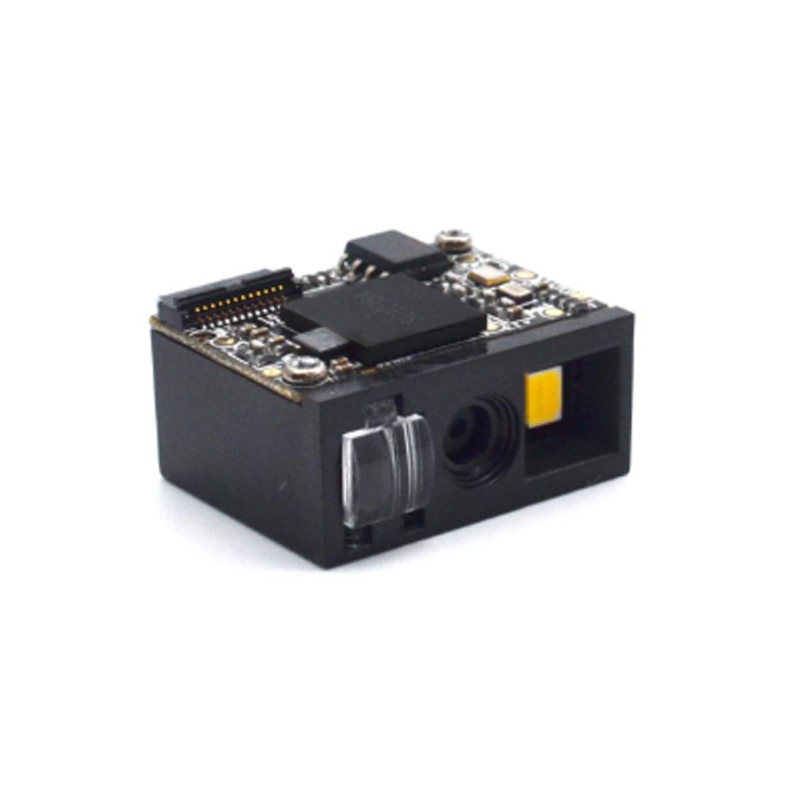

HC-505 2D Imager QR Code Scanner Module For Kiosk System,Ticket Scan Terminal

HC-505 is a good 2d scanner module for Kiosk and Ticket Scan Machine which can decode all main 1d barcode,2d qr codes

Interview Collection share

Main Spec

21.2mm L * 15.3mm W * 11.6mm H, Weight:5g 2D Imager Scannerf Engine,Decode All Main Barcode/ Use on Kiosk/Ticket Scan Terminal Machine

Light Source

617nm LEDaimer)、6500K LEDsillumination


640*480 CMOS

CPU

ARM32-bit

Resolution

≥4mil/0.1mmPCS90%,CODE 39

Depth of Fields

20mm~310mm

Scan Mode

Trigger Scan/Automatic Scan/Continous Scan

Scan Angle

Test ConditionsCODE39,10mil/0.25mm,PCS90%


Roll: ±360°Pitch:±60°,Skew: ±60°

Print Contrast

≥25%

Ambient Illumination

0-10000LUX

Decode Ability

1D:UPC-A,UPC-E, UPC-E1, EAN-8, EAN-13,EAN-14, EAN-128, UCC128, ISBN/ISSN,CODE11,CODE32,CODE39,CODE39,Full,ASCII,CODE93,CODE128UK/Plessey,GS1etc.

2D: QR Code, Data MatrixPDF417etc.

Weight

<5g

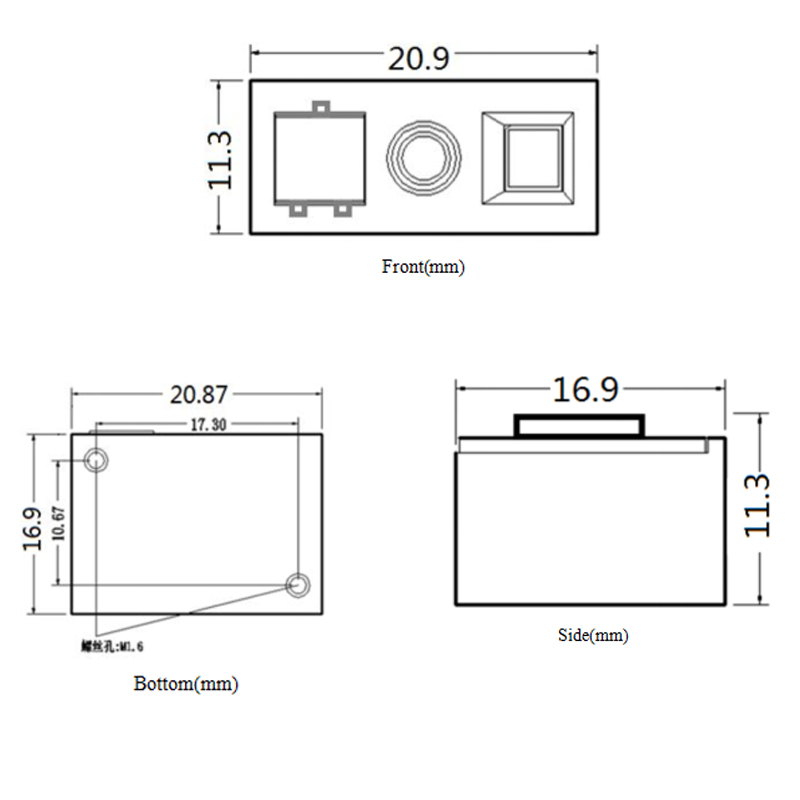

Dimemsion

21.2mm L * 15.3mm W * 11.6mm H

Inteface

USBUSB-KBW/USB-COMTTL-RS232

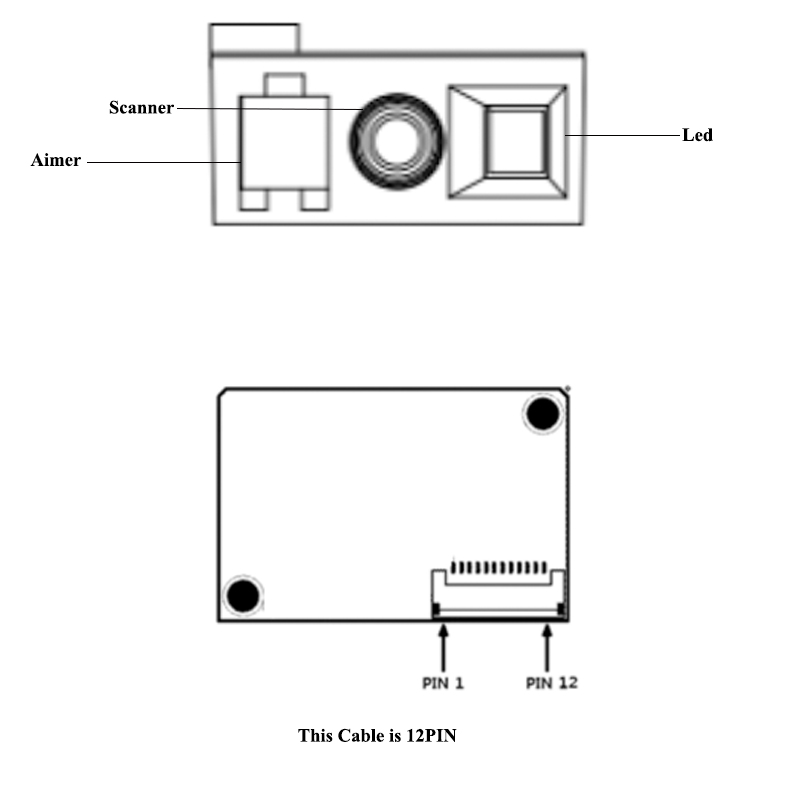

Connector

FFC 12pin pitch 0.5

Working Voltage

DC 3.3V

Current

190mAWorking



Work Temp

-20℃ to 50℃

Storage Temp

-40℃ to 70℃

Work Humidity

5% to 95%No condensation

Drop Test

1.2M4Times

Temp Test

30 minutes for high Temp., 30 minutes for low Temp.,

High

60℃

Low

-20℃
